本文为 VSCode Web 版本的简易搭建教程。

Prerequisites

see https://github.com/microsoft/vscode/wiki/How-to-Contribute#prerequisites

  • Git
  • Node 14.19
  • Yarn
  • Python

Quick Start

  • git clone –depth=1 https://github.com/microsoft/vscode.git
    • 请勿直接下载 Zip 包，会报 Error: Command failed: git config pull.rebase merges fatal: not in a git directory
  • cd vscode
  • yarn
  • yarn gulp vscode-web-min
    • 参考：https://github.com/Felx-B/vscode-web/blob/main/build.js

预览

构建完成后，会有以下目录：

  • out-build
  • out-vscode-web
  • out-vscode-web-min

在 out-vscode-web 目录下，参考 官方 workbench, 新增 index.html，内容如下：

<!DOCTYPE html>
<html>
  <head>
    <meta charset="utf-8" />
    <meta id="vscode-workbench-web-configuration" data-settings="{}" />
    <link rel="stylesheet" href="./vs/workbench/workbench.web.main.css" />
  </head>

  <body></body>
  <script src="./vs/loader.js"></script>
  <script>
    self.webPackagePaths = {
      "@microsoft/applicationinsights-web":
        "https://unpkg.com/@microsoft/applicationinsights-web@2.7.4/dist/applicationinsights-web.min.js",
      "@vscode/iconv-lite-umd":
        "https://unpkg.com/@vscode/iconv-lite-umd@0.7.0/lib/iconv-lite-umd.js",
      "@vscode/vscode-languagedetection":
        "https://unpkg.com/@vscode/vscode-languagedetection@1.0.21/dist/lib/index.js",
      jschardet: "https://unpkg.com/jschardet@3.0.0/dist/jschardet.min.js",
      "tas-client-umd":
        "https://unpkg.com/tas-client-umd@0.1.5/lib/tas-client-umd.js",
      "vscode-oniguruma":
        "https://unpkg.com/vscode-oniguruma@1.6.2/release/main.js",
      "vscode-textmate":
        "https://unpkg.com/vscode-textmate@6.0.0/release/main.js",
      xterm: "https://unpkg.com/xterm@4.18.0/lib/xterm.js",
      "xterm-addon-search":
        "https://unpkg.com/xterm-addon-search@0.8.2/lib/xterm-addon-search.js",
      "xterm-addon-unicode11":
        "https://unpkg.com/xterm-addon-unicode11@0.3.0/lib/xterm-addon-unicode11.js",
      "xterm-addon-webgl":
        "https://unpkg.com/xterm-addon-webgl@0.11.4/lib/xterm-addon-webgl.js",
    };
    require.config({
      baseUrl: location.href,
      recordStats: true,
      trustedTypesPolicy: window.trustedTypes?.createPolicy("amdLoader", {
        createScriptURL(value) {
          return value;
        },
      }),
      paths: self.webPackagePaths,
    });
  </script>
  <script src="./vs/workbench/workbench.web.main.nls.js"></script>
  <script src="./vs/workbench/workbench.web.main.js"></script>
  <script src="./vs/code/browser/workbench/workbench.js"></script>
</html>

在 vscode 项目根路径下，运行 npx http-server -c 0 --cors 进行文件静态代理。 并打开 http://127.0.0.1:8080/out-vscode-web/ 即可。

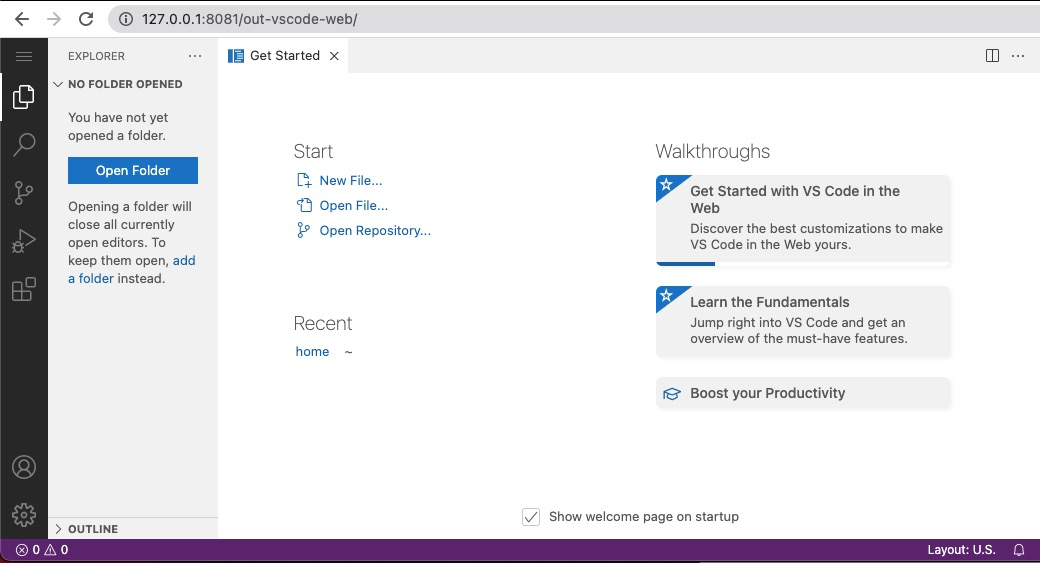

效果如下：

插件 Hello World

修改 index.html 如下：

<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8" />
		<meta id="vscode-workbench-web-configuration" data-settings="{}" />
		<meta
			id="vscode-workbench-builtin-extensions"
			data-settings='[{"extensionPath":"../../","packageJSON":{"enabledApiProposals":["resolvers","fileSearchProvider","textSearchProvider"],"activationEvents":["*"],"browser":"out-vscode-web/test.js"}}]'
		/>
		<link rel="stylesheet" href="./vs/workbench/workbench.web.main.css" />
	</head>

	<body></body>
	<script src="./vs/loader.js"></script>
	<script>
		self.webPackagePaths = {
			"@microsoft/applicationinsights-web":
				"https://unpkg.com/@microsoft/applicationinsights-web@2.7.4/dist/applicationinsights-web.min.js",
			"@vscode/iconv-lite-umd":
				"https://unpkg.com/@vscode/iconv-lite-umd@0.7.0/lib/iconv-lite-umd.js",
			"@vscode/vscode-languagedetection":
				"https://unpkg.com/@vscode/vscode-languagedetection@1.0.21/dist/lib/index.js",
			jschardet: "https://unpkg.com/jschardet@3.0.0/dist/jschardet.min.js",
			"tas-client-umd":
				"https://unpkg.com/tas-client-umd@0.1.5/lib/tas-client-umd.js",
			"vscode-oniguruma":
				"https://unpkg.com/vscode-oniguruma@1.6.2/release/main.js",
			"vscode-textmate":
				"https://unpkg.com/vscode-textmate@6.0.0/release/main.js",
			xterm: "https://unpkg.com/xterm@4.18.0/lib/xterm.js",
			"xterm-addon-search":
				"https://unpkg.com/xterm-addon-search@0.8.2/lib/xterm-addon-search.js",
			"xterm-addon-unicode11":
				"https://unpkg.com/xterm-addon-unicode11@0.3.0/lib/xterm-addon-unicode11.js",
			"xterm-addon-webgl":
				"https://unpkg.com/xterm-addon-webgl@0.11.4/lib/xterm-addon-webgl.js",
		};
		require.config({
			baseUrl: location.href,
			recordStats: true,
			trustedTypesPolicy: window.trustedTypes?.createPolicy("amdLoader", {
				createScriptURL(value) {
					return value;
				},
			}),
			paths: self.webPackagePaths,
		});
	</script>
	<script src="./vs/workbench/workbench.web.main.nls.js"></script>
	<script src="./vs/workbench/workbench.web.main.js"></script>
	<script src="./vs/code/browser/workbench/workbench.js"></script>
</html>

然后我们写一个最简单的插件，代码如下：

!(() => {
	console.log('hi, test.js');
	const vscode = require('vscode');
	debugger;
	console.log(vscode);
	vscode.window.showErrorMessage('hi');
})();

效果如下：

加载机制

  • *.nls.js https://www.npmjs.com/package/vscode-nls, 用于语言的本地化，阅读时可直接忽略。

  • out-vscode-web/vs/code/browser/workbench/workbench.js 用于浏览器端的账号、 UI 控制
    • workspaceProvider
    • settingSyncOptions
    • credentialsProvider
  • out-vscode-web/vs/workbench/workbench.web.main.js
    • out-vscode-web/vs/workbench/services/extensions/worker/webWorkerExtensionHostIframe.html
      • 桥接页面
      • var worker = new Worker(out-vscode-web/vs/base/worker/workerMain.js);
        • 名称为：’DebugWorkerExtensionHost’ 或 ‘WorkerExtensionHost’
        • worker.onmessage
        • loadCode(‘vs/workbench/api/worker/extensionHostWorker’) *
      • worker.postMessage(‘vs/workbench/api/worker/extensionHostWorker’);

// if (environmentService.isBuilt) {

Context

当我们 import vscode from 'vscode' 时，导出的是：vs/workbench/api/common/extHost.api.impl.ts;

所以，需要测试 vscode 接口的时候，可以直接导出

self.extHostCommands = extHostCommands;
self.extHostConsumerFileSystem = extHostConsumerFileSystem;
console.log('extHostCommands => ', extHostCommands);
console.log('extHostConsumerFileSystem => ', extHostConsumerFileSystem);

这样，我们可以直接测试一下命令

self.extHostCommands.executeCommand('workbench.extensions.search')

或者使用 vscode 内置的 filesystem

const textDecoder = new TextDecoder
const content = await self.extHostConsumerFileSystem.value.readFile({
  authority: "",
  fragment: "",
  path: "/20220311T144037/window.log",
  query: "",
  scheme: "vscode-log"
})
console.log(textDecoder.decode(content))

搜索 this._fakeModules，在文件 vs/workbench/api/worker/extHostExtensionService.ts 在其后面添加 self.require = self._require

插件体系

  • 浏览器内置插件 vs/workbench/services/extensionManagement/browser/builtinExtensionsScannerService.ts
    • IWorkbenchEnvironmentService isBuiltIn
      • 搜索 IWorkbenchEnvironmentService { 可看到此接口实现为：
      • vs/workbench/services/environment/browser/environmentService.ts
      • get isBuilt(): boolean { return !!this.productService.commit; }
      • // Web environment or unknown
        • 在构建产物中添加 product.commit = 0;,

References
